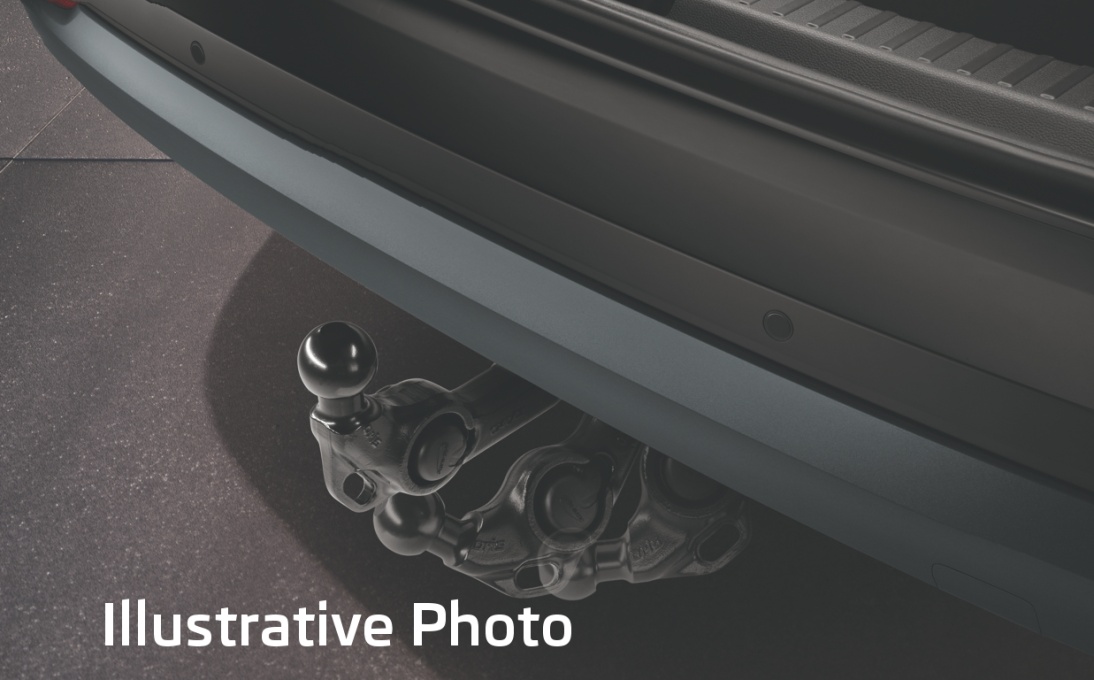

Tow bar KAROQ
The tow bar with electroinstallation complies with homologation ADR 62/02, AS 4177-2004 and E1-55R-012696 and all Czech and international regulations.
The tow bar
- is manufactured from high-quality materials and has undergone load tests as well as rigorous testing for strength and resistance to corrosion,
- complies with homologation ADR 62/02 and AS 41 … Read more
The tow bar
- is manufactured from high-quality materials and has undergone load tests as well as rigorous testing for strength and resistance to corrosion,
- complies with homologation ADR 62/02 and AS 4177-2004 including E1-55R-012696.
- features a simple, automatic mechanism that swivels the ball hitch in and out,
- please refer to the Owner‘s Manual for detailed instructions on how to use the ball hitch.
- depending on the equipment fitted to the vehicle, the cooling system components will need to be replaced in accordance with the information either held by workshop technicians in authorised ŠKODA AUTO specialist service centres or available in B2B.
For fitting, the following items must also be ordered from the ŠKODA Original Components catalogue:
for vehicles with standard rear seats:
for vehicles with standard rear seats:
- Switch x 1 / 3G0 959 511A WHS
- Switch cover x 1 / 5G0 868 345 Support x 1 / 575 868 784
- Adhesive x 1 / D 001 210 M2
for vehicles with Varioflex rear seats:
- Switch x 1 / 565 959 511
- Switch cover x 1 / 565 868 345
- Support x 1 / 57A 868 784
- Adhesive x 1 / D 001 210 M2
for vehicles not set up for a tow bar, additionally:
- Wiring harness / 57A 971 658
for vehicles not set up for a tow bar and with a heated steering wheel, additionally:
- Wiring harness / 57A 971 658G
Added to Your Shopping Cart
Sold out
Delivery only to Škoda E-shop partners
Technical specifications
- Product code
- 57A092160A
- Material
- Quality steel
- Dimensions
- 1150 x 540 x 190 mm.
- Content of set
- Complete tow bar set, bolts, control unit, expanding nuts, information label (bearing load 75 kg), fitting instructions.
- Usage
- See the information label on the vehicle‘s B-pillar for the maximum trailing load (braked/unbraked) and maximum bearing load.
- Restrictions
- The tow bar set is intended exclusively for vehicles exported to Australia. For the basic model of left- and right-hand drive vehicles set up to accommodate a tow bar/not set up to accommodate a tow bar as part of the equipment specification until CW 28/2019. Not available for vehicles manufactured from CW 31/2018 to CW 48/2018 with 1.0 TSi engines (MQ-F 85 kW and DQ-F 85 kW), nor for vehicles manufactured from CW 31/2018 to CW 36/2018 with 1.6 TDi engines (MQ-F 85 kW). Intended exclusively for fitting in vehicles with PR 0YE / PR 0YF / PR 0YG / PR 0YH springs in the equipment specification (bearing load 75 kg).
- Weight
- 32 kg
Designed for:
Karoq (2017+)
